COMPACT TOGGLE CLAMPS - with horizontal/vertical mounting base

CLAMPTEK®Compact Toggle Clamp with horizontal mounting base :

Our Clamps in Compact design are a perfect fit for clamping with limited space. The Toggle Clamps are designed and produces for industrial use.



CH-13005 Compact toggle clamp e.g. alternatively suitable to Destaco305-U, AMF ...

   CH-13007 Compact toggle clamp e.g. alternatively suitable to Destaco 307-U, AMF ...

   CH-13008  Compact toggle clamp e.g. alternatively suitable to Destaco 309-U, AMF ...

CH-13007-T   Compact toggle clamp e.g. alternatively suitable to Destaco 305-UR, AMF ...

CH-13008-T   Compact toggle clamp e.g. alternatively suitable to Destaco 307-UR, AMF ...

Compact toggle clamp

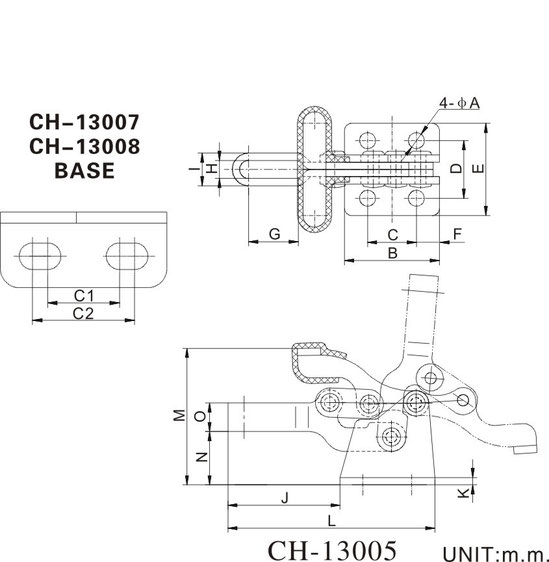

Drawing Compact toggle clamp CH-13007 and CH-13008
MODELL ØA B C C1 C2 D E F G H I J K L M N O
CH-13005-(T) 4.4 26.2 13.5 - - 15.9 25.4 6.4 12.7 5.0 9  30.8 2 57 35.2 14.7 7.9
CH-13007 7 44 - 19 27 29.4 46 10.3 19.5 9.4 15.4  50.1  3  97.3  58.7  22.2  12.7
CH-13007-T 7 44 23 - -  29 46 10.5 19.5 9.4 15.4  50.1  3  97.3  58.7  22.2  12.7
CH-13008 7.9 64.3 - 31 39  38.1 62.7 12.7 28.9 10.4 18.4  70.5  3  135  88.1  33.3  19
MODELL Weight (g) Holding Force (N) Support Spindle

Clamping Arm-

Opening Angle

Handle -

Opening Angle

Datasheet

Price (€)
CH-13005 60 670 CH-FC-10138  90° 170° Download 8,95
CH-13005-T 60 670 CH-FC-10138  90° 170° Download 12,90
CH-13007 230 1470 CH-FC-56212 90° 170° Download  11,90
CH-13007-T 265 1470 CH-FC-56212 90° 170° Download  18,90
CH-13008 590 3140 CH-FC-38312 90° 170° Download  19,90

T = with security Lock

CH-13009  Compact toggle clamp e.g. alternatively suitable to Destaco 309-U, AMF ...

Compact toggle clamp
CH-13009

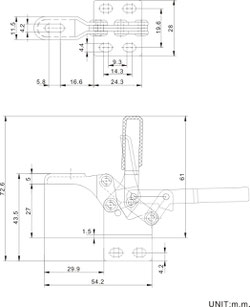

Drawing compact toggle clamp CH-13009 and CH-14009

MODELL Weight (g) Holding force (N) Support Spindle Clamping Arm Opening Handle Handle Opening Angle
Price(€)
CH-13009 40 295 CH-FC-044207  80° 88°

9,70

Model variations:

MODELL Description
CH-13009

with horizontal mounting base

CH-14009

with vertical mounting base



Clamptek CH-13009 CH-14009
