HORIZONTAL TOGGLE CLAMPS

- with vertical and horizontal mounting base -

Horizontal Toggle Clamps by CLAMPTEK® are designed and produced for industrial use in which holding forces from 265N to 4.410N are needed.

CH-201 Horizontal toggle clamp with horizontal mounting base

CH-201-I Horizontal toggle clamp with vertical mounting base

e.g. alternatively suitable to Destaco 205-U and 205-UB, AMF ...

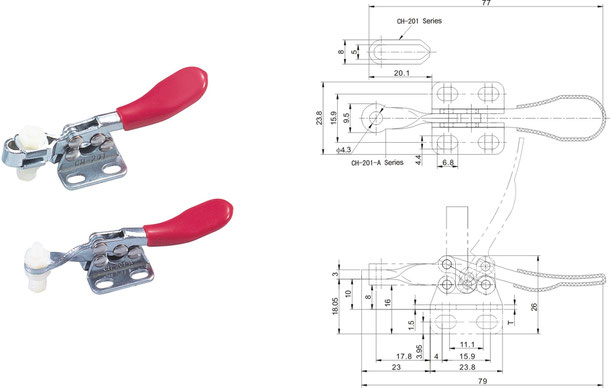

Horizontal toggle clamp with horizontal mounting base CH-201 CH-201-I
MODELL weight (g) Holding Force (N) Support Spindle Clamping arm
Opening angle
Handle
Opening Angle
T Price (€)
 CH-201 35 265

CH-SA-08034

(NYLON)

 90° 80° 1.5 6,95

Model variations:

MODELL

Holding

Force

(N)

Weight

(g)

Support Spindle Clamping Arm Opening-
Angle
Handle Opening-
Angle

Price

€/piece

Datasheet

CH-201-A 270 30

CH-FC-08034

(Nylon)

90° 80° on demand
 Download
CH-201-A(SS) 270 30

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-AI 270 30

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-AL 270 30

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-AR 270 30

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201(SS) 270 35

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-I 270 35

CH-FC-08034

(Nylon)

90° 80° 6,95
CH-201-L 270 35

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-R 270 35

CH-FC-08034

(Nylon)

90° 80° on demand
CH-201-B 900 130 CH-FC-14134 85° 60° 8,90
CH-201-B(SS) 900 130 CH-FC-14134 85° 60° on demand
CH-201-BI 900 130 CH-FC-14134 85° 60° 8,90
CH-201-BS 900 130 CH-FC-14134 85° 60° on demand
CH-201-BSI 900 130 CH-FC-14134 85° 60° on demand
CH-225-D 2270 265 CH-FC-56212 90° 65° 11,90
CH-225-D(SS) 2270 265 CH-FC-56212 90° 65° on demand
CH-225-DI 2270 265 CH-FC-56212 90° 65° 11,90
MODELL

massiver Spann-

arm

U-

Spann-

arm

waagrechter

Fuß

waagrechter Fuß

links abgewinkelt

waagrechter Fuß

rechts abgewinkelt

senkrechter

Fuß

CH-201-A(SS)
CH-201-AI
CH-201-AL
CH-201-AR
CH-201(SS)
CH-201-I
CH-201-L
CH-201-R
CH-201-B(SS)
CH-201-BI
CH-201-BS
CH-201-BSI
CH-225-D(SS)
CH-225-DI



Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw

CH-201-B Horizontal toggle clamp with horizontal mounting base

CH-201-BI Horizontal toggle clamp with vertical mounting base

e.g. alternatively suitable to Destaco 215-U and 215-UB, AMF ...

Horizontal toggle clamp with horizontal mounting base CH-201-B CH-201-BI

Model variations:

MODELL

Holding
Force

(N)

Weight

(g)

Support Spindle
Clamping arm
Opening
Angel

Angel
Handle Opening
Angle

Price

€/piece

CH-201-B 900 130 CH-FC-14134 85° 60° 8,90
CH-201-BI 900 130 CH-FC-14134 85° 60° 8,90
CH-201-BS 900 130 CH-FC-14134 85° 60° on demand
CH-201-BSI 900 130 CH-FC-14134 85° 60° on demand
CH-201-BSS 900 130 CH-FC-14134 85° 60° on demand
MODELL

massive clamping arm

U-clamping arm

Horizontal

mounting base

Vertical

mounting base

CH-201-B
CH-201-BI
CH-201-BS
CH-201-BSI
CH-201-BSS

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw

CH-225-D Horizontal toggle clamp with horizontal mounting base

CH-225-DI Horizontal toggle clamp with vertical mounting base

e.g. alternatively suitable to Destaco  225-U and225-UB, AMF ...

Horizontal toggle clamp with horizontal mounting base CH-225-D und CH-225-DI

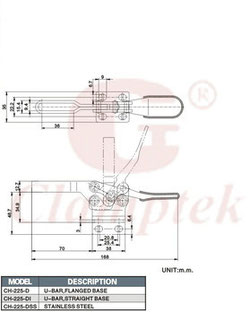

Drawing horizontal toggle clamp with horizontal mounting base CH-225 und CH-225-DI

Model variations:

MODELL

Holding
Force

(N)

Weight

(g)

Support Spindle
Clamping arm
Opening

Angle
Handle Opening
Angle

Price

€/piece

CH-225-D 2270 265 CH-FC-56212 90° 65° 11,90
CH-225-DI 2270 265 CH-FC-56212 90° 65° 11,90
CH-225-DSS 2270 265 CH-FC-56212 90° 65° on demand
MODELL

massive clamping arm

U-clamping arm

Horizontal

mounting base

Vertical

mounting base

CH-225-D
CH-225-DI
CH-225-DSS

CH-20235 Horizontal toggle clamp with horizontal mounting base

CH-20236 Horizontal toggle clamp with vertical mounting base

e.g. alternatively suitable to Destaco  235-U and 235-UB, AMF ...

Horizontal toggle clamp CH-20235 und CH-20236
MODELL

Holding
Force

(N)

Weight

(g)

Support Spindle
Clamping Arm Opening-
Angle
Handle  Opening-
Angle

Price

€/piece

CH-20235 3330 700 CH-FC-38312 85° 50° 18,90
CH-20236 3330 700 CH-FC-38312 85° 50° 18,90

Model variations:

MODELL Description
CH-20235

U-clamping arm, with horizontal mounting base, horizontal handle

CH-20236

U-clamping arm, wiht vertical mounting base, vertical handle

CH-20235-SS of stainless steel

CH-20752-B Horizontal toggle clamp e.g. alternatively suitable to Destaco 205-U and 213-U, AMF ...

CH-21502-B Horizontal toggle clamp e.g. alternatively suitable to Destaco 205-U and 217-U, AMF ...

CH-22502-B Horizontal toggle clamp e.g. alternatively suitable to Destaco 205-U and 227-U, AMF ...

CH-23502-B Horizontal toggle clamp e.g. alternatively suitable to Destaco 205-U and 237-U, AMF ...

CH-24502-B Horizontal toggle clamp e.g. alternatively suitable to Destaco 205-U and 245-U, AMF ...

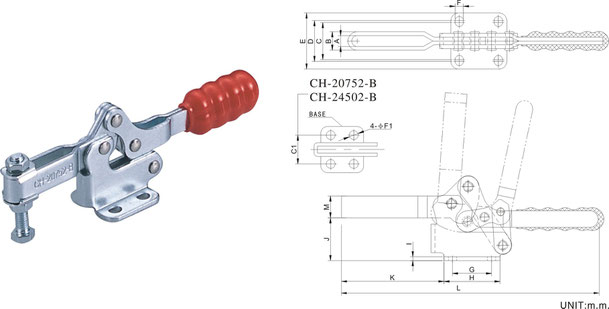

Horizontal toggle clamp e.g. alternatively suitable to Destaco 213-U 217-U 227-U 237-U 245-U



MODELL Weight(g) Holding Force (N) Support Spindle Clamping Arm -
Opening Angle
Handle Arm -
Opening Angle
Price (€)
CH-20752-B 88 735 CH-SA-053008  94° 76° 9,90
CH-21502-B 220 1470 CH-SA-064010 94° 76°  11,90
CH-22502-B 430 2450 CH-SA-085012 94° 76°  17,90
CH-23502-B 872 2430 CH-SA-107515 94° 76°  24,90
CH-24502-B 1400 4410 CH-SA-121017 94° 76°  35,90
