LATCH TYPE / HOOK TYPE TOGGLE CLAMPS

- vertical -

with lever and counter-bearing

CH-40324 Latch type / hook type toggle clamp e.g. alternatively suitable to Destaco 324, AMF usw ...

CH-40334 Latch type / hook type toggle clamp e.g. alternatively suitable to Destaco 334, AMF usw ...

CH-40344 Latch type / hook type toggle clamp e.g. alternatively suitable to Destaco 344, AMF usw ...

Latch type / hook type toggle clamp horizontal CH-40324, CH-40334, CH-40344

 MODELL

Holding

Force

(N)

 Weight (g)

 Price

€/piece

 CH-40324

2250

100

11,90

CH-40324(SS)

2250 100 on demand

 CH-40334

4500 290 14,90

CH-40334(SS)

4500 290 on demand

CH-40344

9000 660 28,90

 CH-40344(SS)

9000  660 on demand

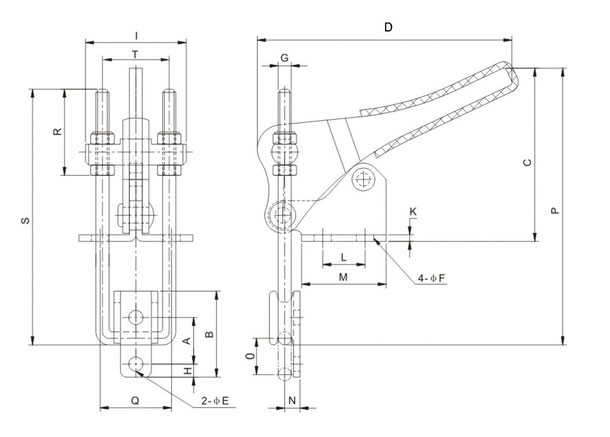

Drawing latch type / hook type toggle clamp CH-40324, CH-40334, CH-40344

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw.
