VERTICAL TOGGLE CLAMPS

- with horizontal and vertical mounting base -

Vertical Toggle Clamps of CLAMPTEK® are produced for industrial use with high standards which require holding force between 500N- 5500N.

CH-101-A Vertical Clamp with horizontal mounting base

CH-101-AI Vertical Clamp with vertical mounting base



e.g. alternatively suitable to Destaco 201-U and 201-UB, AMF...

Vertcial Clamp with horizontal mounting base CH-101-A CH-101-AI

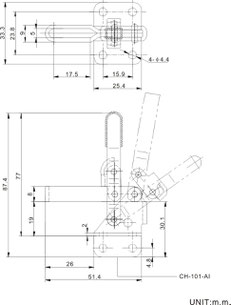

Drawing vertical clamp with mounting base CH-101-A CH-101-AI

Model variations:

MODELL Holding Force

(N)

Weight

(g)

Support Spindle Clamping arm Opening-
Angle

Handle

Opening-
Angle

Datasheet

Price

€/piece.

CH-101-A 500 60 CH-FC-10138 100° 56° Download 7,95
CH-101-A(SS) 500 60 CH-FC-10138 100° 56° Download on demand
CH-101-AI 500 60 CH-FC-10138 100° 56° Download 7,95
CH-101-AIT 500 60 CH-FC-10138 100° 56° Download on demand
CH-101-AT 500 60 CH-FC-10138 100° 56° Download on demand
CH-12205 1820 620 CH-FC-56212 101° 57° on demand on demand
CH-12210 1820 620 CH-FC-56212 101° 57° on demand on demand
CH-12215 1820 620 CH-FC-56212 101° 57°  on demand on demand
CH-12220 1820 620 CH-FC-56212 101° 57° on demand on demand
MODELL Massive clamping arm

U-clamping arm

Horizontal mounting base Vertical mounting base
Stroght  Handle

T-Handle

CH-101-A(SS)
CH-101-AI
CH-101-AIT
CH-101-AT
CH-12205
CH-12210
CH-12215
CH-12220

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw.

CH-12050-U Vertical Clamp with horizontal mounting base

CH-12055-U Vertical Clamp with vertical mounting base


e.g. alternatively suitable to Destaco 202-U and 202-UB, AMF...

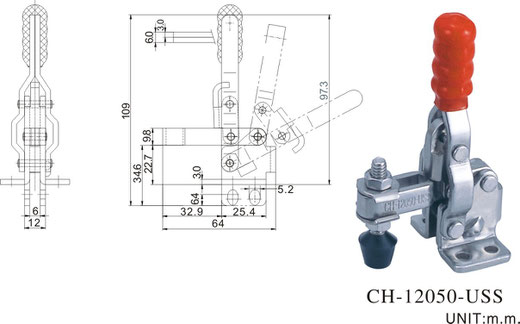

Vertical Clamp with horizontal mounting base CH-12050-U CH-12055-U

Model variations:

MODEL

HOLDING FORCE

(N)

WEIGHT

(g)

SUPPORT SPINDLE
CLAMPING ARM OPENING-
ANGLE
HANDLE OPEMIMG-
aNGLE

PRICE

€/PIECE.

CH-12050 910 170 CH-FC-14134 100° 60° on demand
CH-12050-(SS) 910 170 CH-FC-14134 100° 60° on demand
CH-12055 910 170 CH-FC-14134 100° 60° on demand
CH-12060 910 170 CH-FC-14134 100° 60° on demand
CH-12065 910 170 CH-FC-14134 100° 60° on demand
CH-12070 910 170 CH-FC-14134 100° 60° on demand
CH-12075 910 170 CH-FC-14134 100° 60° on demand
CH-12080 910 170 CH-FC-14134 100° 60° on demand.
CH-12085 910 170 CH-FC-14134 100° 60° on demand
CH-12050-U 910 170 CH-FC-14134 100° 60° 8,95
CH-12050-U(SS) 910 170 CH-FC-14134 100° 60° on demand
CH-12055-U 910 170 CH-FC-14134 100° 60° 8,95
CH-12050-HB 910 186 CH-FC-14134 100° 60° on demand
CH-12050-SM 910 186 CH-FC-14134 100° 60° on demand
MODEL

Fixer

spindle

Massive

clamping arm

U-

Spann

arm

Horizontal mounting base
Vertical mounting base

Straight handle

T-

handle

CH-12050-SS
CH-12055
CH-12060

CH-12065
CH-12070
CH-12075
CH-12080
CH-12085
CH-12050-U(SS)
CH-12055-U
CH-12050-HB
CH-12050-SM

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw.

CH-12130 Vertical Clamp with horizontal mounting base

CH-12135 Vertical Clamp with vertical mounting base

  e.g. alternatively suitable to Destaco 207-U and 207-UB, AMF...

CH-12130  Vertical Clamp with horizontal mounting base

                    (e.g. alternatively suitable to Destaco 207-U, AMF...)



CH-12135  Vertical Clamp with vertical mounting base

                     (e.g. alternatively suitable to Destaco 207-UB, AMF...)

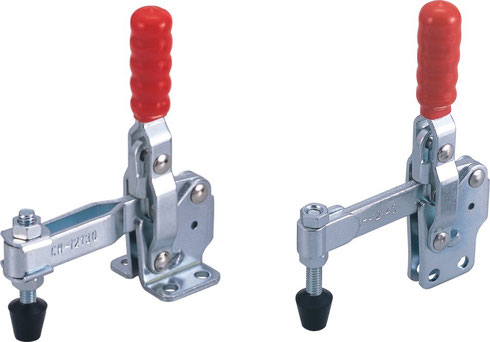

Vertical clamp with horizontal mounting base CH-12130 CH-12135
Drawing vertical clamp with horizontal mounting base CH-12130 CH-12135
Drawing vertical clamp with mounting base CH-12130 CH-12135 T-Handgriff

Model variations:

MODEL

HOLDING FORCE

(N)

WEIGHT

(g)

Clampig screw Clamping arm- opening angle

Handle

opening-
angle

Price

€/piece.

CH-12130

2270 355 CH-FC-56212 100° 60° 11,90
CH-12130(SS) 2270 355 CH-FC-56212 100° 60° on demand
CH-12131 2270 370 CH-FC-56212 100° 60° on demand
CH-12132 2270 370 CH-FC-56212 100° 60° on demand
CH-12133 2270 400 CH-FC-56212 100° 60° on demand
CH-12135 2270 355 CH-FC-56212 100° 60° 11,90
CH-12136 2270 370 CH-FC-56212 100° 60° on demand
CH-12137 2270 370 CH-FC-56212 100° 60° on demand
CH-12138 2270 400 CH-FC-56212 100° 60° on demand
CH-12140 2270 340 CH-FC-56212 100° 60° on demand
CH-12141 2270 355 CH-FC-56212 100° 60° on demand
CH-12142 2270 355 CH-FC-56212 100° 60° on demand
CH-12143 2270 375 CH-FC-56212 100° 60° on demand
CH-12145 2270 340 CH-FC-56212 100° 60° on demand
CH-12146 2270 355 CH-FC-56212 100° 60° on demand
CH-12147 2270 355 CH-FC-56212 100° 60° on demand
CH-12148 2270 375 CH-FC-56212 100° 60° on demand
CH-12130-HB 2270 401 CH-FC-56212 100° 60° on demand
CH-12130-SM 2270 395 CH-FC-56212 100° 60° on demand
MODEL short massive clamping arm long massive clamping arm short U-clamping arm

long U-clampig arm

horizontal mounting base vertical mounting base straight handle

T-handle

CH-12130(SS)
CH-12131
CH-12132
CH-12133
CH-12135
CH-12136
CH-12137
CH-12138
CH-12140
CH-12141
CH-12142
CH-12143
CH-12145
CH-12146
CH-12147
CH-12148
CH-12130-HB
CH-12130-SM

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw

CH-12265 Vertical Clamp with horizontal mounting base

CH-12270 Vertical Clamp with vertical mounting base

e.g. alternatively suitable to Destaco 210-U and 210-UB, AMF...

Vertical clamp with horizontal mounting base CH-12265 CH-12270
Drawing with vertical Clamp with horizontal mounting base CH-12265 CH-12270

Model variations :

MODEL

HOLDING FORCE

(N)

WEIGHT

(g)

Clamping scew Clamping arm- opening angle Handle opening-angle

Price

€/piece.

CH-12265

3400 635 CH-FC-38312 105° 58° 17,90
CH-12265(SS) 3400 635 CH-FC-38312 105° 58° on demand
CH-12270 3400 635 CH-FC-38312 105° 58° 17,90
CH-12275 3400 680 CH-FC-38312 105° 58° on demand
CH-12280 3400 680 CH-FC-38312 105° 58° on demand
CH-12285 3400 710 CH-FC-38312 105° 58° on demand
CH-12290 3400 710 CH-FC-38312 105° 58° on demand
CH-12295 3400 735 CH-FC-38312 105° 58° on demand
CH-12300 3400 735 CH-FC-38312 105° 58° on demand
CH-12305 3640 990 CH-FC-38312 100° 65° on demand
CH-12310 3640 990 CH-FC-38312 100° 65° on demand
CH-12315 3640 990 CH-FC-38312 100° 65° on demand
CH-12320 3640 990 CH-FC-38312 100° 65° on demand
MODEL

Massive

clamping arm

U-

clamping arm

Open

clamping-

arm

Horizontal mounting base Vertical mounting base
Straight handle

T-

handle

CH-12265-SS
CH-12270
CH-12275
CH-12280
CH-12285
CH-12290
CH-12295
CH-12300
CH-12305
CH-12310
CH-12315
CH-12320



Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw

CH-10247 Vertical Clamp with horizontal mounting base

CH-10248 Vertical Clamp with vertical mounting base

  e.g. alternatively suitable to Destaco 247-U and 247-UB, AMF...

Vertical clamp with horizontal mounting base CH-12247 CH-12248
Drawing Vertical clamp with horizontal mounting base CH-12247 CH-12248

Model variations:

MODEL

HALTE-

KRAFT

(N)

WEIGHT

(g)

Clamping screw Clamping arm opening-
angle
Handle opening-
angle

Price

€/piece.

CH-10247

4500 1250 CH-FC-12300

100° - 115°

62° - 68° 29,90
CH-12248 4500 1250 CH-FC-12300 100° - 115° 62° - 68° 29,90
CH-12249 4500 1250 CH-FC-12300 100° - 115° 62° - 68° on demand
CH-12250 4500 1250 CH-FC-12300 100° - 115° 62° - 68° on demand
MODEL

Massive

clamping arm

U-clamping arm

Horizontal mounting base
Vertical mounting base
CH-10247
CH-12248
CH-12249
CH-12250

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw

CH-101-J Vertical Clamp with horizontal mounting base

CH-101-JSB Vertical Clamp with vertical mounting base

e.g. alternatively sutable to Destaco  267-U and 267-UB, AMF...

Vertical clamp with horizontal mounting base CH-101-J 101-JSB
Drawing Vertical clamp with horizontal mounting base CH-101-J 101-JSB

Model variations:

MODEL

HOLDING FORCE

(N)

WEIGHT

(g)

Clamping Screw Clamping arm opening-
angle
Handle opening-
angle

Price

€/piece.

CH-101-J

5500 2540

CH-SA-58500

100° - 140°

48° - 60° 39,90
CH-101-JS 5500 2540

CH-SA-58500

100° - 140° 48° - 60° on demand
CH-101-JSB 5500 2540

CH-SA-58500

100° - 140° 48° - 60° 39,90
CH-101-JSI 5500 2540

CH-SA-58500

100° - 140° 48° - 60° on demand
MODEL

Massive

clamping arm

U-clamping arm

Horizontal mounting base Vertical mounting base
CH-101-J
CH-101-JS
CH-101-JSB
CH-101-JSI

Material: Galvanized steel, rivets made of stainless steel,

The meodels in high-grade stianless design are referred to with "SS" behind the model number.

All models are shipped together with the clamping screw
