HYDRAULIC SUPPORT ELEMENT

CTC -  Hydraulic support element, threaded cylinders

CTC-01
CTC-01
CTC-2
CTC-2

ORDERING INDICATION :



CTC -  16  A

 ①   -

CTC

Series CTC
 16 piston diameter

 (mm)

Φ12,Φ16,Φ20, Φ25
A Type Divide A type und B type

Features :



- single acting

- min. operating pressure 20 bar

- max. operating pressure 250 bar

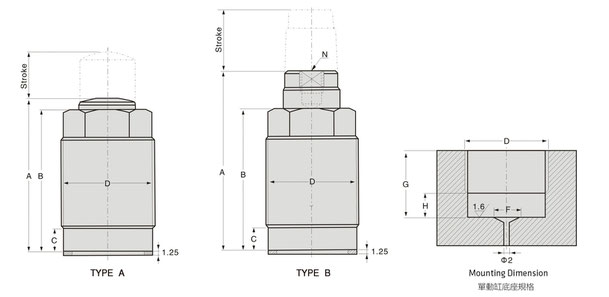

CTC CAD
CTC CAD
CTC-Dimebsion table

CSP -  Hydraulic Support Element - single acting

Hydraulic support element CSP
Hydraulic support element CSP

ORDERING INDICATION :



CSP -  26  AL  C  L

 ①   -     ③

CSP

Series CSP
 16 Hydarulic cyliner inside diameter

 (mm)

Φ26,Φ30,Φ36, Φ45
AL Type

Low pressure :

AL : type A

BL : type B

High pressure :

A : type A

B : type B

 C



version

L

Plunger spring force

L : low spring

H : high spring

Features :



- single acting

- min. operating pressure 20 bar

- max. operating pressure 70 bar

- Screw-in type


CSP CAD
CSP CAD

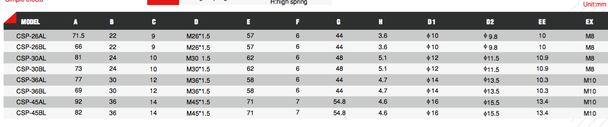

CSP - Dimension table

CSF -  Hydraulic Support element - double acting

CSF Series - Hydraulic support element
CSF Ordering Indication

CSF Diagramme
FEAUTRES: OPERATING PRESSURE:
1.This series of products with compact structure, reasonable design, long service  life, in 2-7Mpa working conditions, can keep stable performance.

2.According to the different thickness of work piece, which can adjust the piston rod out spring strength.

3.Piston rod out of contact force is small,0.4-0.8bar range, suitable for all kinds of work piece.

4.This product support power is large, can eliminate mechanical load and working vibration in the cutting process.

Min. operating pressure

20 bar

Max. operating pressure

70 bar



- double acting -

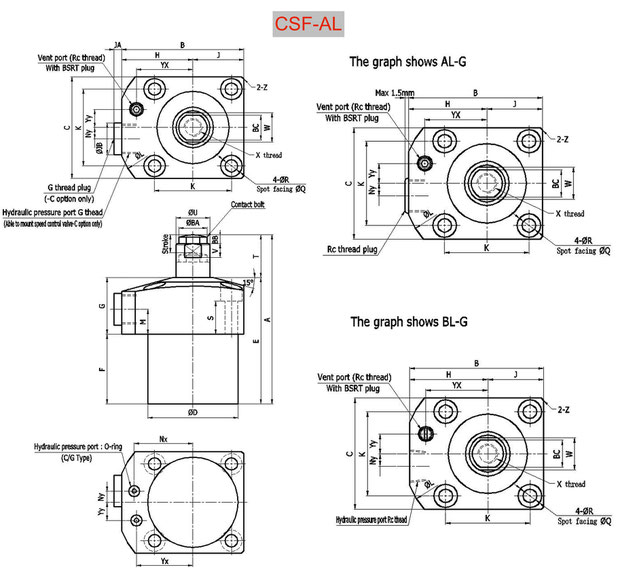

CAD CSF-AL
CAD CSF-AL

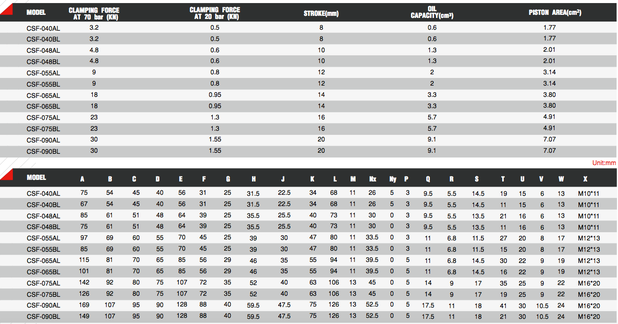

CSF Tabelle 1

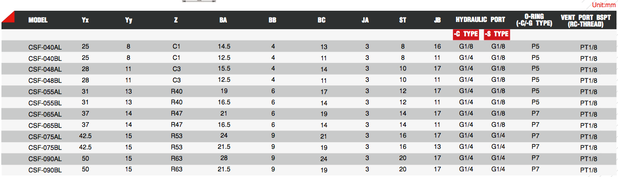

CSF Tabelle 2
