HYDRAULIC SWING CLAMPS

NHSU -  Hydraulic Swing Clamp

Hydraulic swing clamp NHSU-SERIES
Hydraulic swing clamp NHSU-SERIES

ORDERING IDENTICATION :



NHSU -  L  40 X 90

  ①    -

NHSU

Series NHSU
 L

Rotating direction

Turn right R  or

turn left L

40

Hydraulic cylinder

Inside diameter

 (mm)

Φ25,Φ32,Φ40, Φ50, Φ63
90 Rotating angle

Standard angle 90°(±2°)

order angle 0°,45°  (±2°),60°(±2°)

Features :



- double acting

- min. operating pressure 20 bar

- max. operatin pressure 45 bar

- Flansch zur direkten Befestigung und Grundkörper mit

  Außengewinde zum Befestigen mit Nutmuttern.

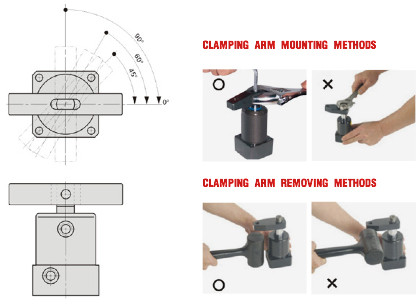

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.




CAD NHSU
CAD NHSU

NHU-SERIE -  Hydraulic Swing Clamp

Hydraulic swing clamp NHUL
Hydraulic swing clamp NHUL
Hydraulic swing clamp NHUDR
Hydraulic swing clamp NHUDR

ORDERING IDENTICATION :



NHU -  L  40 X 90

 ①   -

NHU

Series NHU
 L

Rotation direction

Turn right R or

turn left L

40

Hydraulic cylinder

Inside Diameter

 (mm)

Φ32,Φ40, Φ50, Φ63
90 rotation angle

Standard angle 90°(±2°)

order angle 0°,45° (±2°),60°(±2°)

Features :



- double acting

- min. operating pressure 20 bar

- max. operatin pressure 45 bar

- verschiedene Anschlussmöglichkeiten

- Flansch zur direkten Befestigung und Grundkörper mit Außengewinde zum Befestigen mit Nutmuttern.

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.




NHU CAD
NHU CAD

NHS & NHTS -  Hydraulic Swing Clamp

Hydraulic swing clamp NHS&NHTS

ORDERING IDENTICATION:



NHS -  L  40 X 90 -  G

 ①   -          ④

NHS

Series NHS, NHSD, NHTS, NHTSD
 L

Rotating direction

Turn right R or

turn left L

40

Hydraulic cylinder

Inside Diameter (mm)

Φ25,Φ32,Φ40,Φ50,Φ63
90 rotation angle

Standard angle 90°(±2°)

order angle 0°,45° (±2°),60°(±2°)

G

Piping method

Blank: line type

G : Manifold type

Features :



- double acting

- min. operating pressure 20 bar

- max. operating pressure 45 bar

- various connection options

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.


CAD NHS and NHSD
CAD NHS and NHSD
CAD NHTS and NHTSD
CAD NHTS and NHTSD
NHS & NHTS Varianten

The measurements count for clamps in the opended position:

CHS - Hydraulic Swing Clamp

CHS Series Hydraulic swing clamp

Features :



- double acting

- min. operating pressure 10 bar

- max. opreating pressure70 bar

- various connection options

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

ORDERING INDICATION :



CHS -  MF  25  S   R  X 90 -   E

 ①   -             ⑤  ⑥

CHS

Series CHS
MF

Typ

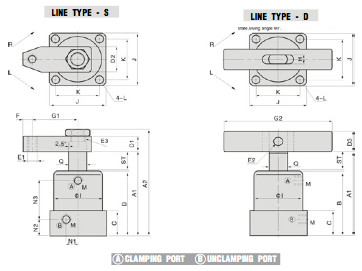

Blank: line type

M : Manifold type

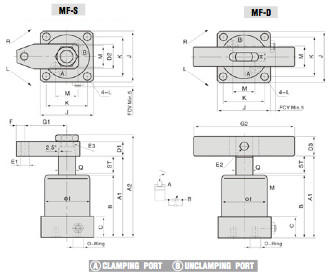

MF : Manifold with flow control

FA : Flange type

FAM : Flange wiht manifold

FAMT : Flange with flow control

TB : Threaded body

25

Hydraulic cylinder

nside diameter

r (mm)

Φ25,Φ32,Φ40,Φ50,Φ63
S Clamping arm type

S : Single side arm

D : double

R

Rotation direction

Turn right R or

turn left L

N:0 (no swing)

90 Rotating angle 90°, 60°, 45°

E

  Stroke extension - line type

HPS -  Hydraulic Swing Clamp

Hydraulic swing clamp HPS
Hydraulic swing clamp HPS

HPS-Modellvarianten
HPS CAD
HPS CAD
HPS-Dimension Table

NFS-SERIE -  Hydraulic Swing Clamp

Hydraulic swing clamp NFS
Hydraulic swing clamp NFS

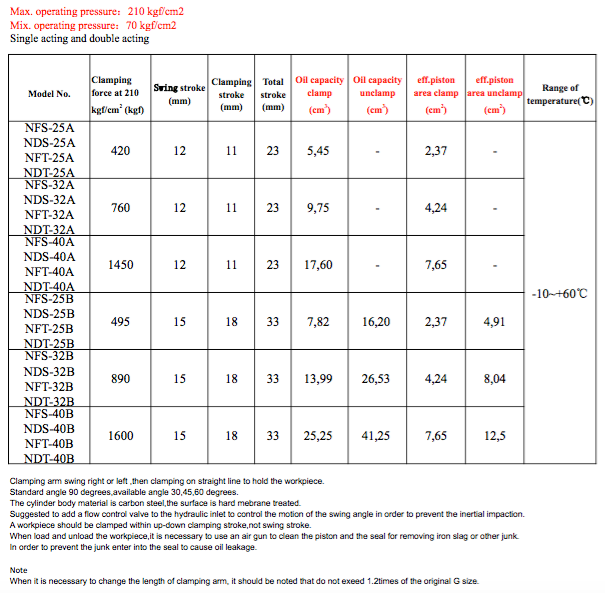

NFS-Modellvarianten
NFS CAD
NFS CAD

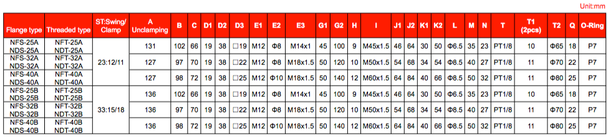

NFS-Dimension Table
