HYDRAULIC LEVER TOGGLE CLAMPS

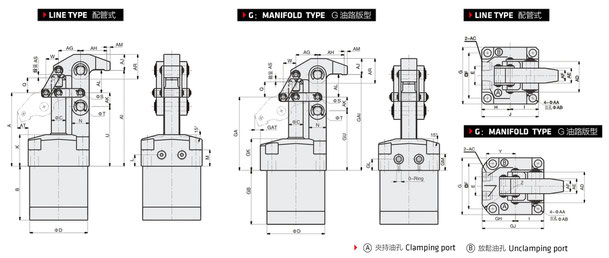

CLF5H Hydraulic Leverage Clamp

ORDERING INDICATION :

CLF5H - 32 G

① ② ③

①

CLF5H

Series

CLF5H

②

32

Hydraulic cylinder inside diameter

Φ25,Φ32,Φ40,Φ50

③

G

Port type

Blank: line type

G : Manifold Typ

Features :

- double acting

- min. operating pressure 5 bar

- max. operating pressure 70 bar

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

Kunden-Produktvideo CLF5H auf Youtube ansehen

CLKA Hydraulic Leverage Clamp

ORDERING INDICATION :

CLKA - 32 C L

① ② ③ ④

①	CLKA	Series	CLKA
②	32	Hydraulic inside diameter (mm)	Φ22, Φ25,Φ32,Φ40Φ50, Φ63, Φ70, Φ80
③	C	Port type	Blank: line type G : Manifold Type C : Manifold with flow type
④	L	Lever direction	Blank: standard L : Left R : Right

Features :

- double acting

- min. operating pressure 5 bar

- max. operating pressure 70 bar

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

CLKA-SERIE - HYDRAULISCHER HEBELSPANNER - Dimension table

LHC01 Hydraulic Leverage Clamp

ORDERING INDICATION :

LHC01 - D 40 R A

① ② ③ ④ ⑤

①	LHC01	Series	LHC01
②	D	Acting type	D : double acting
③	40	Hydraulic cylinder insider diameter (mm)	Φ25,Φ32,Φ40,Φ50,Φ63
③	R	Lever arm direction	Blank L : Links R : Rechts
④	A	Cylinderbody molding

Features :

- double acting

- min. operating pressure 20 bar

- max. operating pressure 50 bar

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

LHC01-SERIE - HYDRAULISCHER HEBELSPANNER - Dimension table

CHLC Hydraulic leverage clamp

ORDERING INDICATION :

CHLC - MF 25 A

① - ② ③ ④

①	CLHC	Series	CLHC
②	MF	Port Type	Blank: Line Type M : Manifold Type MF : Manifold with flow type FA : Flange-Version FAM : Flange with Manifold FAMT : Flange with flow control
③	25	Hydraulic cylinder inside diameter (mm)	Φ25,Φ32,Φ40,Φ50,Φ63
④	A	A integrated

Features :

- double acting

- min. operating pressure 10 bar

- max. operating pressure 50 bar

- when you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

Kunden-Produktvideo CHLC auf Youtube ansehen

CHLC-SERIE - HYDRAULISCHER HEBELSPANNER - Dimension table
