PNEUMATIC LEVER TOGGLE CLAMP

- Body: made of Aluminium alloying 6061T6

- Piston rod: S45C Steel, hard chromium plated

- Cylinder installation on upper surface

- Only use high-quality sealing kits in order to prevent leakage and increase   lifetime of the quality products

- Specially designed lever arm for efficient clamping

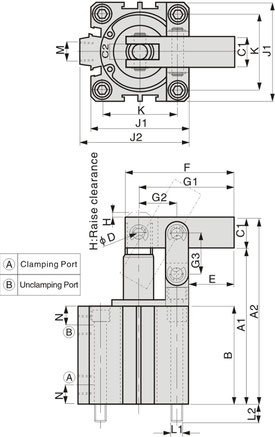

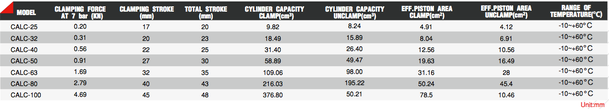

- available in Cylinder sizes: 25, 32, 40, 50 and 63mm.

Min. operating pressure 4 bar

Max. operating pressure 7 bar

- double acting -

NOTE :

- When you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!

Applied Standardized fixture cylinder in this series of product, and fitted with levertype holding structure.

Piston push out for clamping. Main spare parts of this product be installed outside of the body for convenient maintenance. The material of body is aluminum alloy. The surface of internal is smooth, and have long service life. Clamping spare parts material is carbon steel which used for mechanical configuration, firm and wear-resistance. All models of this series equiped with magnetic induction are available.

Min. operating pressure 1 bar

Max.operating pressure 7 bar

- double acting -

NOTE :

- When you need to increase the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!
