PNEUMATIC SWING CLAMP

CAS-SERIE -  Pneumatic Swing Clamp

CAS-Series - Pneumatic swing clamp
CAS-Series - Pneumatic swing clamp
FEATURES : Operating pressure :

When the piston push down, the clamping arm will rotate to the design angle, then push down on straight line hold the workpiece.

You had better install a flow control valve to adjust the acting speed, and don't clamping workpiece when the clamp is running, Otherwise will be easy to damage the body and the spare parts

The material of cylinder body is aluminum alloy, surface processed with hardening and internal face is smooth,so the service life of product is long.

Min. operating pressure

4 bar

Max. operating pressure

7 bar



- double acting  -

NOTE :

- When you need to increae the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!


For our CAS Series we offer optional welding protection accessories in order to protect the piston rod from welding splatters. Please note that the measurements for the accessories vary (mainly in height).




CAS Series Dimension 1
CAS Series Dimension 2
CAS diverse Ausführungen
CAS Series Drawing

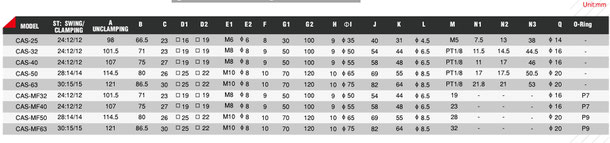

CAS-Dimension table

NAU-SERIE -  Pneumatic Swing Clamp

NAUD-Series - Pneumatic swing clamp
NAU-Series - Pneumatic swing clamp

NAU Ordering Indication
FEATURES : Operating pressure :
Aluminum alloy body Blackening , Surface heat-treatment for product good wear-resisting .The type of clamping includes single side swing clamp and double side swing clamp

Min. operating pressure

4 bar

Max. operating pressure

7 bar



- double acting -

NOTE :

- When you need to increae the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!

CAD NAU-Series
NAU Ausführungen
NAU Serie Dimension 2

NPSU-SERIE -  Pneumatic Swing Clamp

NPSU Series - Pneumatic swing clamp
NPSU Series - Pneumatic swing clamp
NPSU Ordering Indication

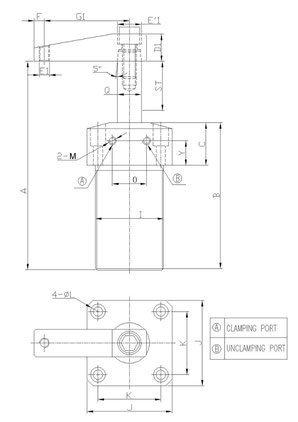

CAD NPSU Series

FEATURES : operating pressure :
This product is main for clamp in fixture, compressed-air in and out through the hole on flange.

Aluminum alloy body Blackening , Surface heat-treatment for product good wear-resisting.

The top of flange have four screwholes for installation.

Round nuts link the Piston rod and fixture.

Min.  operating pressure 4 bar

Max. operating pressure 7 bar



- double acting -

NOTE :

- When you need to increae the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!

NPSU Serie Dimension 1
NPSU Serie Dimension 2

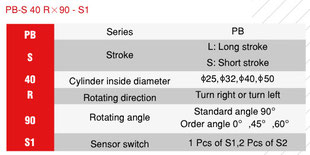

PB-SERIE -  Pneumatic Swing Clamp Induction Type

PB-Series - Pneumatic swing clamp
PB-Series - Pneumatic swing clamp

FEATURES : operatin pressure :
This product is perfect , design in brief,the structure is compact,the weight is light,the service life is long and holding capacity is strong.

Two types available--- long stroke and short stroke .

Fixing from top , base or the side of cylinder is ok.

Be applied in industry automatization. clipping of foil, clipping and transporting of work piece on the conveyer belt, main used for packing pipelining.

Min. operating pressure

4 bar

Max. operating pressure

7 bar



- double acting -

NOTE :

- When you need to increae the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!

PB-Series Drawing
PB Serie Dimension 1
PB Serie Dimension 2

PSB-SERIE -  Pneumatic Block Swing Clamp

PSB-Series - Pneumatic swing clamp
PSB-Series - Pneumatic swing clamp
FEATURES : operating pressure :
This product is perfect , design in brief,the structure is compact, the weight is light,the service life is long and holding capacity is strong.

You can install an indcutor on this product if you need.

Fixing from top , base or the side of cylinder is ok.

Min. operating pressure

4 bar

Max. operating pressure

7 bar



- double acting -

NOTE :

- When you need to increae the length of the clamping arm, please don´t exceed 1.5 times of the original length.

- Note: Only operate with oiled air!

PSB Serie Dimension 1
PSB Serie Dimension 2
