PNEUMATIC TOGGLE CLAMPS

CH-10101-A  Pneumatic toggle clamps

e.g. alternatively suitable to Destaco 812, AMF ...

Pneumatic toggle clamp
CH-10101-A
MODELL CH-10101-A
Holding Force (N) 500
Weight (g) 280
Clamping arm
U-clamping arm
Cylinder inside diameter (mm) 20
Cylinder Area (cm2) 3.14

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

Clamping Arm opening Angle

82°

Port Size

G1/8"

Price

119,00

Drawing CH-10101-A
MODELL P A B D E F G H J K L
CH-10101-A 170 47.7 4.8 25.7 CH-FC-10138 21 23.8 15.9 4.5 52 55
CH-10101-A Datenblatt.pdf
Adobe Acrobat Dokument 106.5 KB

CH-12050-UA and CH-12050-A  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco 802, AMF ...

Pneumatic toggle clamp
CH-12050-A and CH-12050-UA
MODELL CH-12050-UA CH-12050-A
Holding Force (N) 910 910
Weight (g) 620 620
Clamping arm
U-clamping arm
massive clamping arm
Cylinder inside diameter (mm) 32 32

Cylinder Area (cm2) 8.04 8.04

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

Clamping arm
Opening Angle

92°

92°

Port size

G1/8" G1/8"

Price

a.A 129,00

Drawing CH-12050-A and CH-12050-UA
MODELL P A B D E F G H J K L
CH-12050-(U)A 185 57 6.3 35 CH-FC-14134 25.7 27 12.7 5.2 69 51

CH-12130-A and CH-12132-A  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco  807-UL and 807-L, AMF ...

pneumatic toggle clamp
CH-12130-A and CH-12132-A
MODELL CH-12130-A
CH-12132-A
Holding Force (N) 2270 2270
Cylinder inside diameter (mm) 32 32
Cylinder Area (cm2) 8.04 8.04

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

Clamping Arm
opening angle

92°

92°

Port Size

G1/8" G1/8"

Price

146,90 on demand

Drawing CH-12130-A and 12132-A
MODELL P A B D E F G H J K L
CH-12130-A 246 75.4 11 68 CH-FC-56212 34,8 31.8 19 7.1 74 73
CH-12132-A 270 75.4 11 92.6 CH-FC-56212 34,8 31.8 19 7.1 74 73

CH-12265-A and CH-12275-A  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco 810-S, AMF ...

pneumatic toggle clamp
CH-12265-A and CH-12275-A
MODELL CH-12265-A
CH-12275-A
Holding Force (N) 3400 3400
Weight (g) 1640 1800
Cylinder inside diameter (mm) 40 40
Cylinder Area (cm2) 12.56 12.56

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

Clamping arm
opening angle

86°

86°

Port Size

G1/8" G1/8"

Price

on demand
on demand

Drawing CH-12265-A and CH-12275-A
MODELL P A B D E F G H J K L
CH-12265-A 302 97 8.7 92 CH-FC-38312 47.2 45.2 31.8 8.7 98 92
CH-12275-A 308 97 8.7 91 CH-FC-38312 47.2 45.2 31.8 8.7 98 92

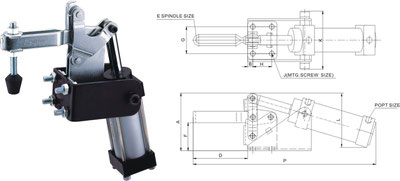

CH-10247-A and CH-10249-A  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco 847-UL and 847-S, AMF ...

pneumatic toggle clamp
CH-10247-A and CH-10249-A
MODELL CH-12247-A
CH-12249-A
Holding Force (N) 4500 4500
Weight (g) 3620 3640
Cylinder inside diameter (mm) 50 50
Cylinder Area (cm2) 19.625 19.625



Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

Clamping arm opening angle

95°

95°

Port Size

G1/8" G1/8"

Price

on demand
on demand

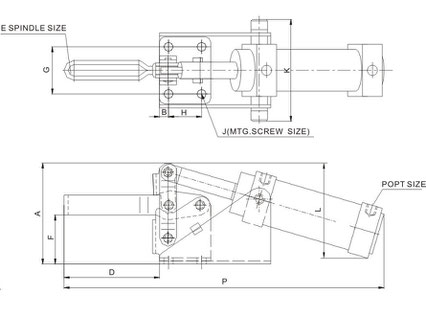

Drawing CH-10247-A and CH-10249-A
MODELL P A B D E F G H J K L
CH-10247-A 407 112 9.5 125.4 CH-SA-12300 56.1 45.2 31.8 8.7 112 104
CH-10249-A 407 112 9.5 125.4 CH-SA-12300 56.1 45.2 31.8 8.7 112 104

CH-20820-A and CH-20830-A  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

pneumativ toggle clamp
CH-20820-A and CH-20830-A
MODELL CH-20820-A
CH-20830-A
Holding Force (N) 980 3330
Weight (g) 1000 2060
Cylinder inside diameter (mm) 32 40
Cylinder Area (cm2) 7.07 12.56

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

Clamping arm opening angle

80°

79°

Port size

G1/8" G1/8"

Price

149,00 198,00
MODELL P A B D E F G H J K L
CH-20820-A 165 109.5 15 62 CH-FC-56212 70 25 16 6.7 67 195
CG-20830-A 216.6 149.5 9.25 82.9 CH-FC-38212 98.3 44.4 31.8 8.3 96 237

CH-702  Pneumatic toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

pneumatic toggle clamp
CH-702-DA
MODELL CH-702-CA
CH-702-DA CH-702-KA
Holding Force (N) 2000 5000 10000
Weight (g) 1140 3015 6250
Cylinder inside diameter (mm) 32 40 63
Cylinder Area (cm2) 7.07 12.56 31

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

10

140

Clamping arm
opening angle

65°

72°

80°

Port Size

G1/8" G1/8" G1/8"

Price

on demand
on demand
on demand

Drawing pneumatic toggle clamp
MODELL P A B C D E F ØJ M G H H1 K L
CH-702-CA 236 158 103 80 27 8 56.4 8.5 12 38 35 20 - 15
CG-702-DA 263 277 142 93 34 13 81 11 16 46 50 - 28 20
CH-702-KA 416 360 175 126 33 16 90.4 12.4 20 60 65 45 50 20

CH-36301-A Pneumatic push - pull toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

CH-36301-A pneumatic push - pull toggle clamp
MODELL CH-36301-A
Holding Force (N) 450
Weight (g) 280
Cylinder inside diameter (mm) 20
Plunger stroke (mm) 7.5
Cylinder Area (cm2) 3.14

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

Port Size

G1/8"

Price

on demand

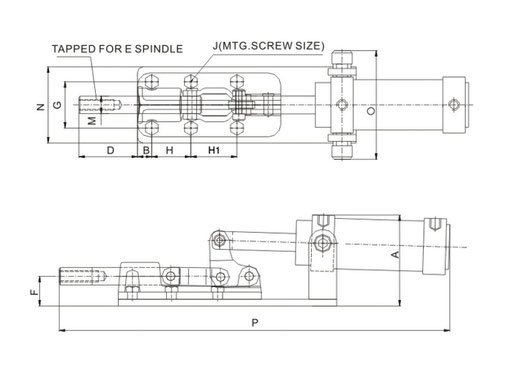

Drawing pneumatic push -pull toggle clamp CH-36301-A
MODELL P A B D E F G H H1 J M N O
CH-36301-A 189 40 7.4 35.2 CH-SA-042007 14.7 15.9 15.9 - 4.4 6.4 34 51

CH-36003-A Pneumatich push - pull toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

CH-36003-A Pneumatic push-pull toggle clamp
MODELL CH-36003-A
Holding Force (N) 2720
Weight (g) 960
Cylinder inside diameter (mm) 32
Plunger stroke (mm) 19.7
Cylinder Area (cm2) 7.07

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

Port Size

G1/8"

Price

on demand

Drawing pneumatic push-pull toggle clamp CH-36003-A
MODELL P A B D E F G H H1 J M N O
CH-36003-A 259.3 69.5 10.8 54.5 CH-SA-085012 27.7 33.3 36.5 - 5.6 11.1 56 70

CH-36330-A Pneumatic push - pull toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

CH-36330-A Pneumatic push-pull toggle clamp
MODELL CH-36330-A
Holding Force (N) 11360
Weight (g) 2570
Cylinder inside diameter(mm) 40
Plunger Stroke (mm) 28
Cylinder Area (cm2) 12.56

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

Port Size

G1/8"

Price

on demand

Drawing pneumatic push-pull toggle clamp CH-36330-A
MODELL P A B D E F G H H1 J M N O
CH-36330-A 347 84 12.7 51.5 CH-SA-105015 26.6 41.3 34.9 41.3 8.7 15.9 68 97

CH-305-EA Pneumatic push - pull toggle clamp

e.g. alternatively suitable to Destaco , AMF ...

CH-305-EA Pneumatic push-pull toggle clamp
MODELL CH-305-EA
Holding Force (N) 3860
Weight (g) 1540
Cylinder inside diameter (mm) 32
Plunger Stroke (mm) 23.6
Cylinder Area (cm2) 7.07

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

Port Size

G1/8"

Price

on demand

Drawing pneumativ push-pull toggle clamp CH-305-EA
MODELL P A B D E F G H H1 J M N O
CH-305-EA 310.8 75.8 8.9 75 CH-SA-105015 37.8 41.3 41.3 - 8.3 15.9 57.2 74

CH-30600HL-A    CH-31200HL-A     CH-32500HL-A

Pneumatic push - pull toggle clamp

pneumatic push-pull toggle clamp
CH-32500-HL-A
MODELL CH-30600HL-A
CH-31200HL-A CH-32500HL-A
Holding Force (N) 6000 12000 25000
Weight (g) 1540 3900 7730
Cylinder inside diameter (mm) 32 40 40
Plunger Stroke (mm) 25 32 50
Cylinder Area (cm2) 7.07 12.56 12.56

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

10

140

Price

on demand
on demand
on demand

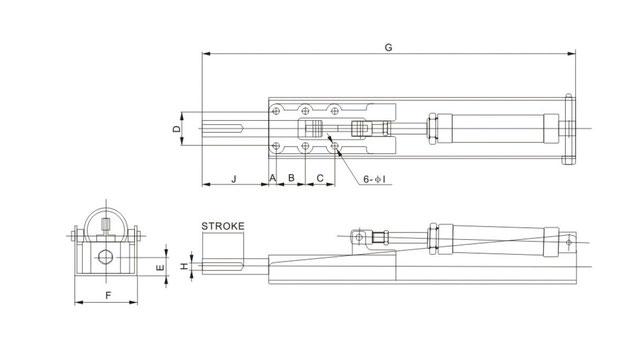

Drawing pneumativ push-pull toggle clamp CH-32500-HL-A
MODELL Spindle supplied A B C D E F G H ØI J
CH-30600HL-A CH-SA-086512 25 36.5 - 33.6 14 59 325 M8 P=1.25 5.5 38
CH-31200HL-A CH-SA-107515 8 35 41 41 21 76 435 M10 P=1.5 8.5 55
CH-32500HL-A CH-SA-127517 12 45 45 54 26 96 577 M12 P=1.75 10.3 102

CH-30600PR-A    CH-31200PR-A     CH-32500PR-A

Pneumatic press

pneumatic press
CH-30600-PR-A
MODELL CH-30600PR-A
CH-31200PR-A CH-32500PR-A
Holding Force (N) 6000 12000 25000
Weight (g) 4570 10890 22160
Cylinder inside diameter (mm) 32 40 40
Plunger Stroke (mm) 25 32 50
Cylinder Area (cm2) 7.07 12.56 12.56

Maximum Cylinder     kg/cm2

air pressure (bar)          PSI

10

140

10

140

10

140

Price

on demand
on demand
on demand

Drawing pneumatic press -PR-A
MODELL Spindle supplied A B C D E F G H ØI J K L M ØP O
CH-30600HL-A CH-SA-086512 10 95 80 94 48 52 30 M8 P=1.25 9 75  150 432 100 15.6 M8*1.25
CH-31200HL-A CH-SA-107515 12.5 115 95 113 57 63 40 M10 P=1.5 11 100  203  534  120  20  M10*1.5
CH-32500HL-A CH-SA-127517 12.5 145 125 139 71 79 50 M12 P=1.75 11 120  238  748  150  30  M10*1.5
